Simple Ray Tracer - A physical-based path tracing in C
A high-performance Monte Carlo path tracer written from scratch in pure C, featuring BVH acceleration, multiple importance sampling (MIS), Sobol sequences, and energy-conserving BSDFs.
✨ Features
- Pure C implementation — zero external dependencies beyond Assimp for mesh loading and cglm for math
- BVH Acceleration — SAH-optimized binary tree with per-ray traversal stats
- Multiple Importance Sampling — combines BSDF and light sampling using the balance heuristic
- Next-Event Estimation — direct lighting with directional lights and sky
- HDR Environment Lighting — MIS-enabled sampling of HDR sky using precomputed CDFs.
- Sobol Quasi-Random Sampling — fast convergence and low-discrepancy stratification
- Recursive Path Integration — with Russian Roulette termination for energy conservation
- OBJ Support — via Assimp for mesh import and material parsing (OpenPBR-compatible)
📸 Example Render

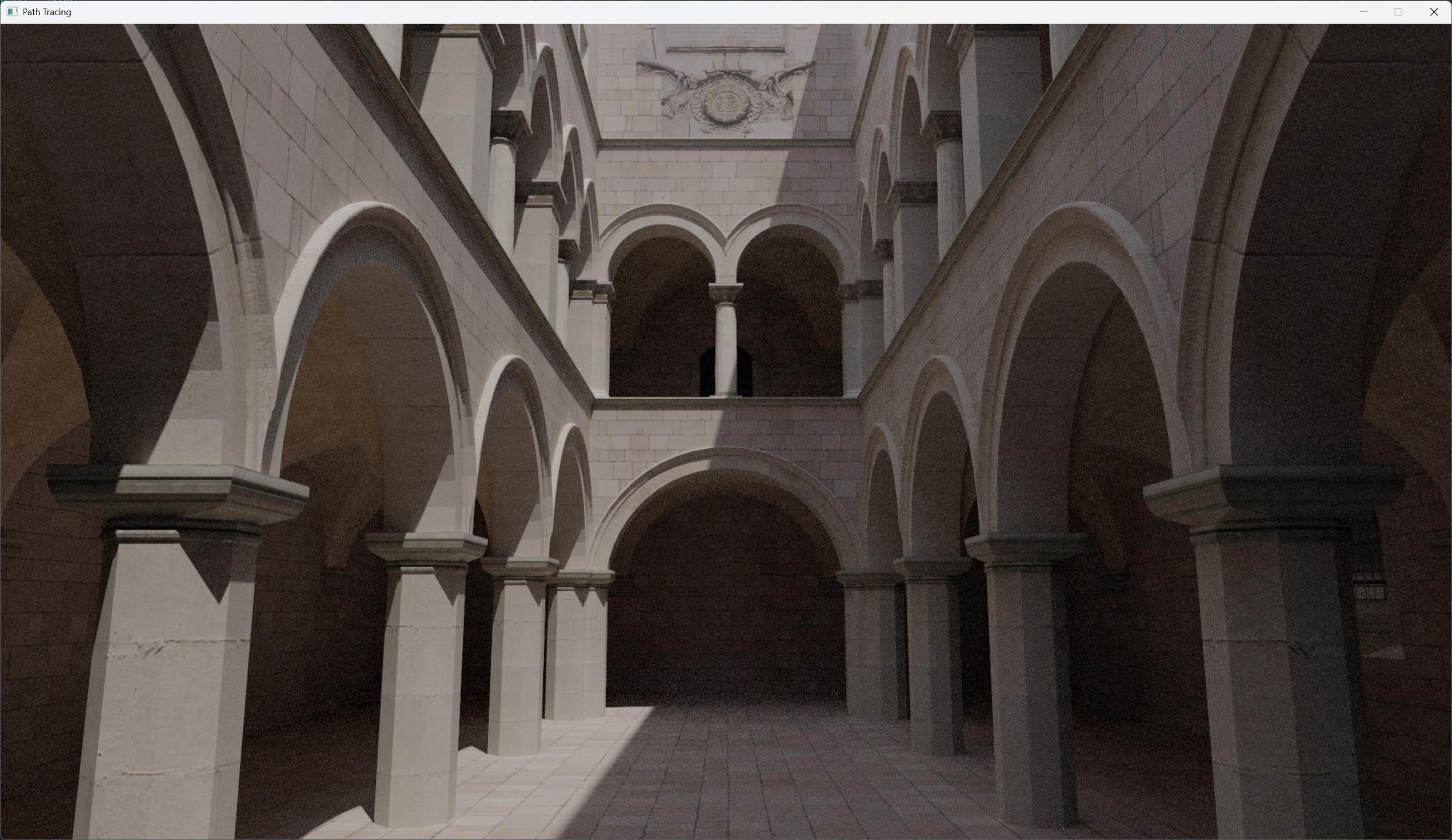

Sponza rendered with 64 spp:

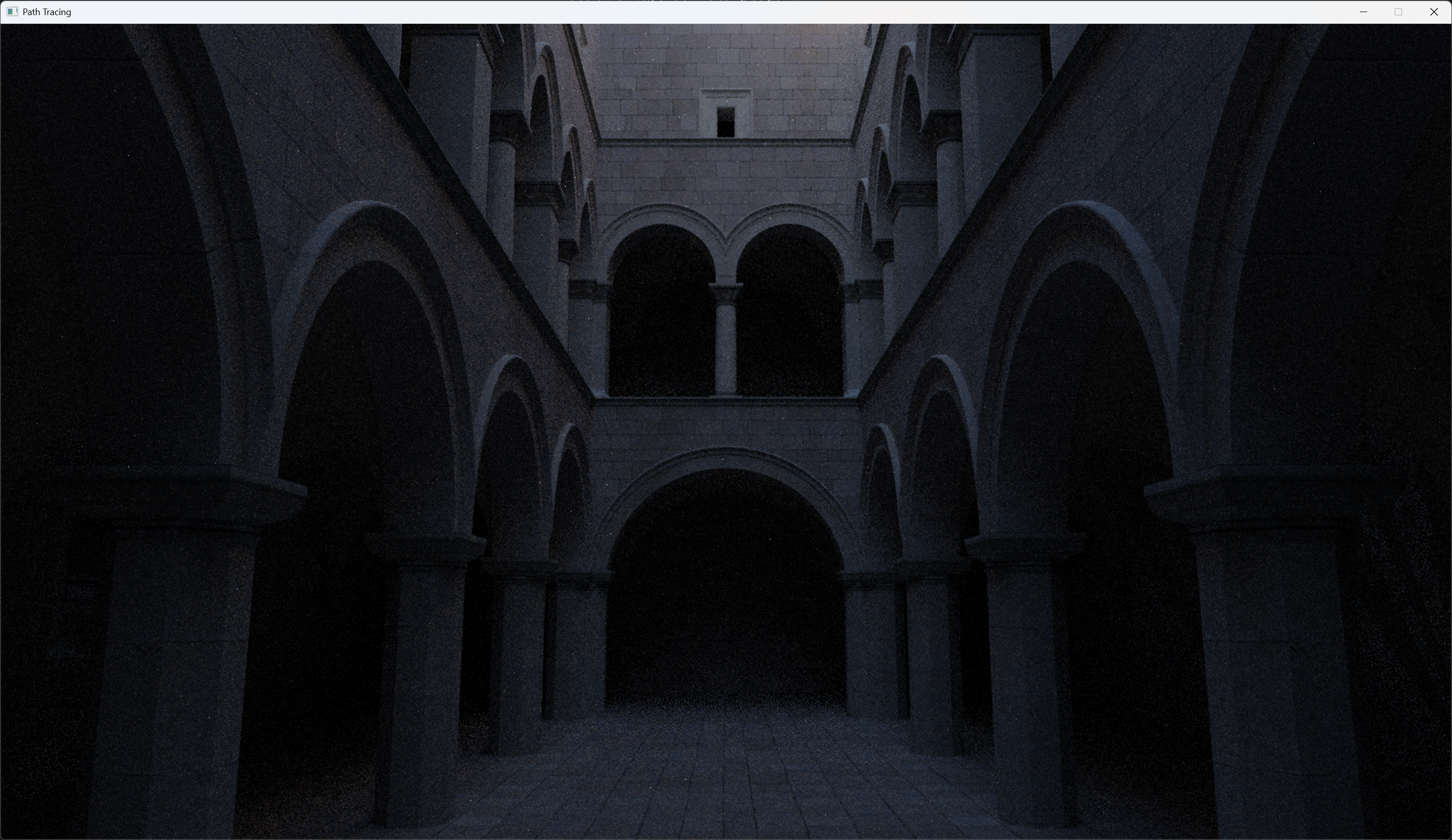

Sponza rendered with 64 spp and hdri sky only:
🔧 Build Instructions
Requirements
- C compiler (GCC, Clang, MSVC)
- OpenMP
- CMake
Build
You can use the provided CMakeLists.txt to build the project. Just run the following commands in the root directory of the project:
cmake -S . -B build
If you have powershell installed, you can run the build.ps1 script in project root directory.
🧠 Technical Breakdown
BVH Acceleration
- Built with Surface Area Heuristic (SAH) to reduce average traversal cost.
- Debug counters log how many BVH nodes each ray touches, for profiling scene structure.
Multiple Importance Sampling (MIS)
- Balance heuristic weights BSDF and light sampling PDFs.
- Supports both directional lights and sky light via next-event estimation. Produce noise-free renders with low sample counts.
HDR Sky Lighting
- Supports importance sampling of environment maps using a hierarchical CDF over solid angles.
- Combined with MIS and BSDF sampling for noise-free global illumination, even with strong dynamic ranges.
Sobol Sampling
- 32D low-discrepancy sequences for camera rays, light sampling, and Russian roulette.
- Faster convergence and lower variance than pure RNG at 64 spp.
Materials (BSDFs)
- Lambertian, and specular supported.
- Designed to align with the OpenPBR material model.
Path Tracing
- Recursive, physically-based integration with energy conservation checks.
- Russian Roulette applied adaptively after second bounce.
🚧 Roadmap
- AOV support (e.g. normals, albedo, depth)
- Support for more complex materials (e.g. glass)
- Standardize light unit
- General speed improvements
- Add GPU backend with CUDA
- Support for glossy microfacet models (GGX)
- Support for better diffuse models (Oren-Nayar)
- Support for volumetric scattering (homogeneous media)
- Light hierarchy for large emitter sets
- Better multithreaded rendering
- GUI frontend with real-time control
